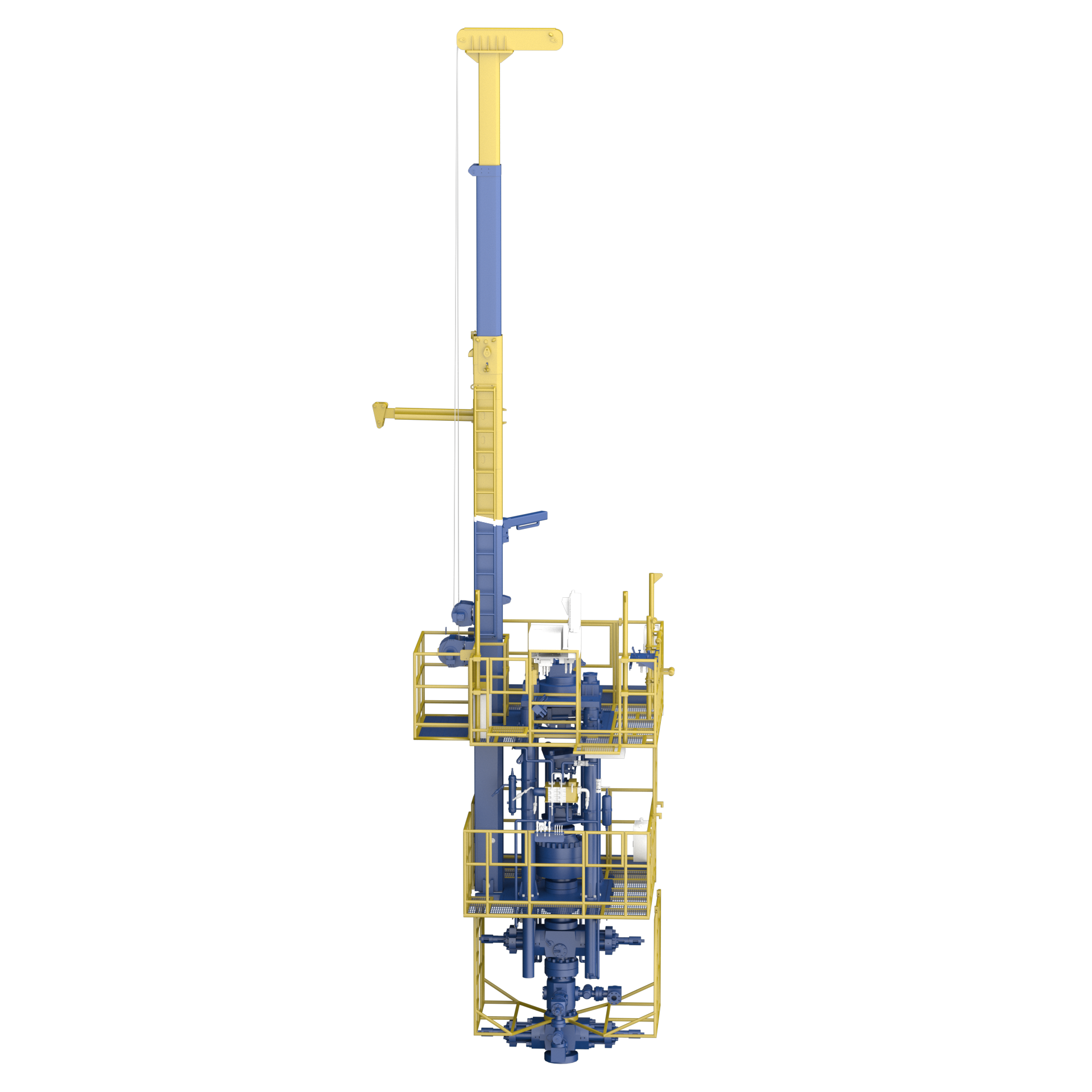

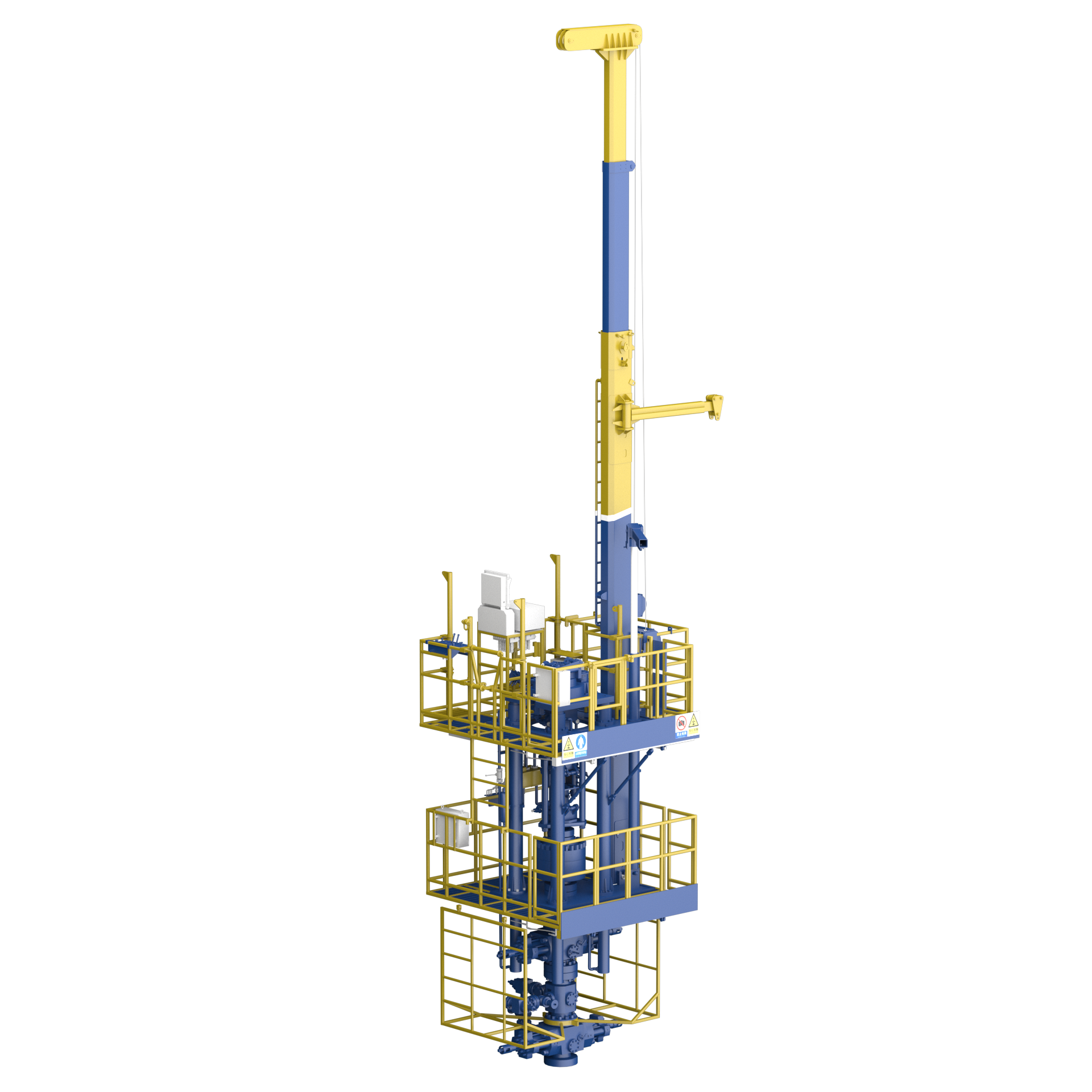

225K - 240K Conventional and Remote Operated Pressure Workover Rigs.
Specificatons
Jack
Maximum Lifting Capacity: 340,000 lb
Maximum Snubbing Force: 170,000 lb
Maximum Stroke: 12 ft
Rotary Table Speed: 100 rpm
Rotary Table Torque: 22,000 ft/lb
Pipe Range: 2-3/8" to 8-5/8"
Bore Diameter: 13-5/8", window thru bore up to 21"
Working Pressure: 5,000 psi / 10,000 psi / 15,000 psi
Stop Hazards Here, Make Safety Within Reach
The 225K-240K Conventional/Remote-Operated
Snubbing Unit features an innovative
fully remote operation mode, completely
removing operators from the hazardous
wellhead area. High-definition camera
arrays integrated with sensor fusion
technology deliver real-time visualization
of wellhead conditions and equipment status,
enabling intrinsically safe production.
